MODEL-SPECIFIC DRAWING
01
Dimensions & structure
Overall dimensions, visible area, enclosure profile and installation clearances are confirmed for the selected screen size.
Special-Shaped Displays

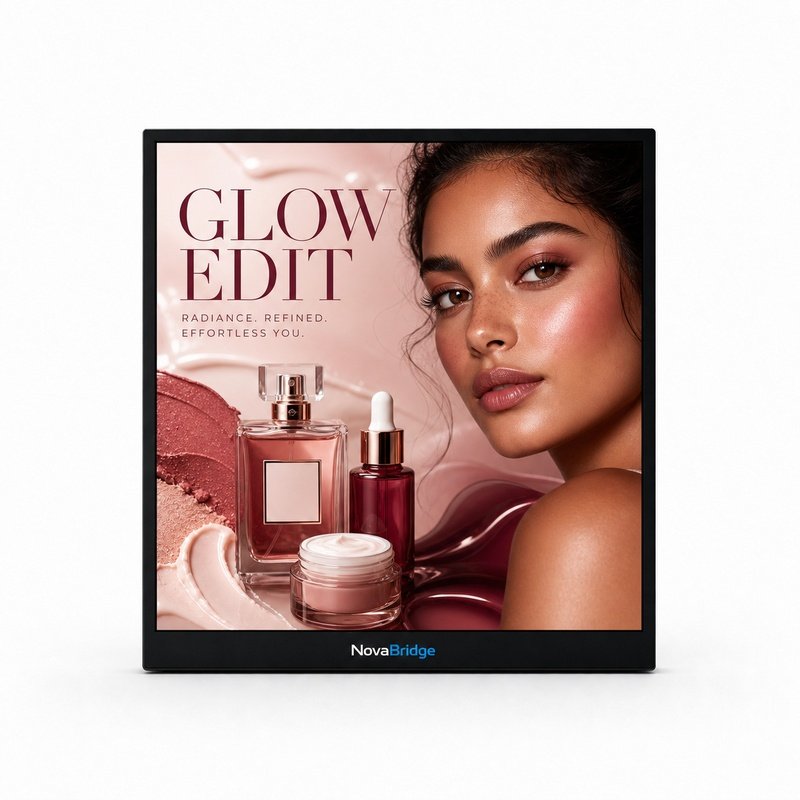

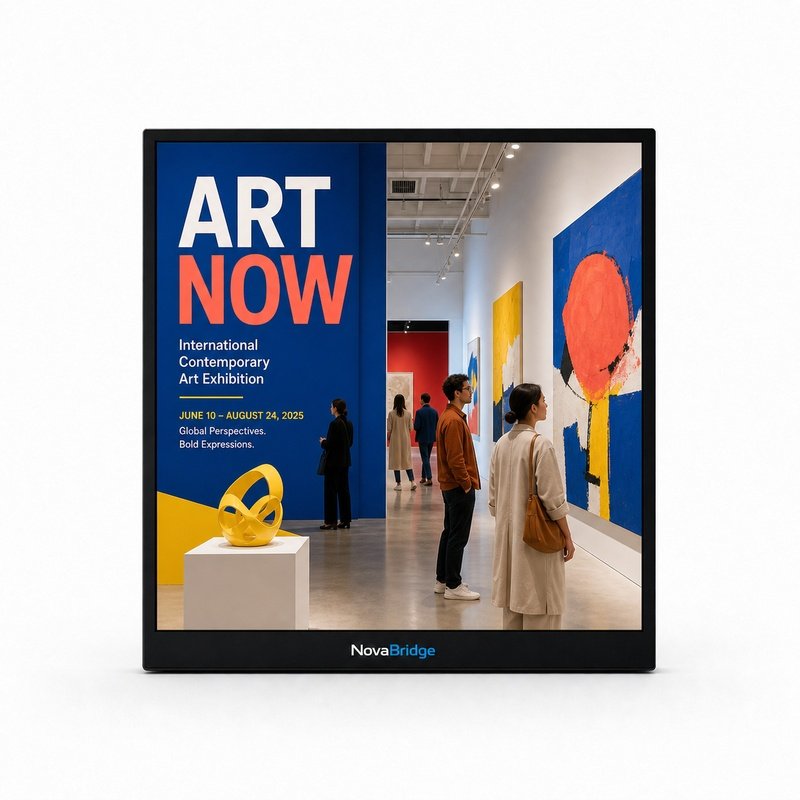

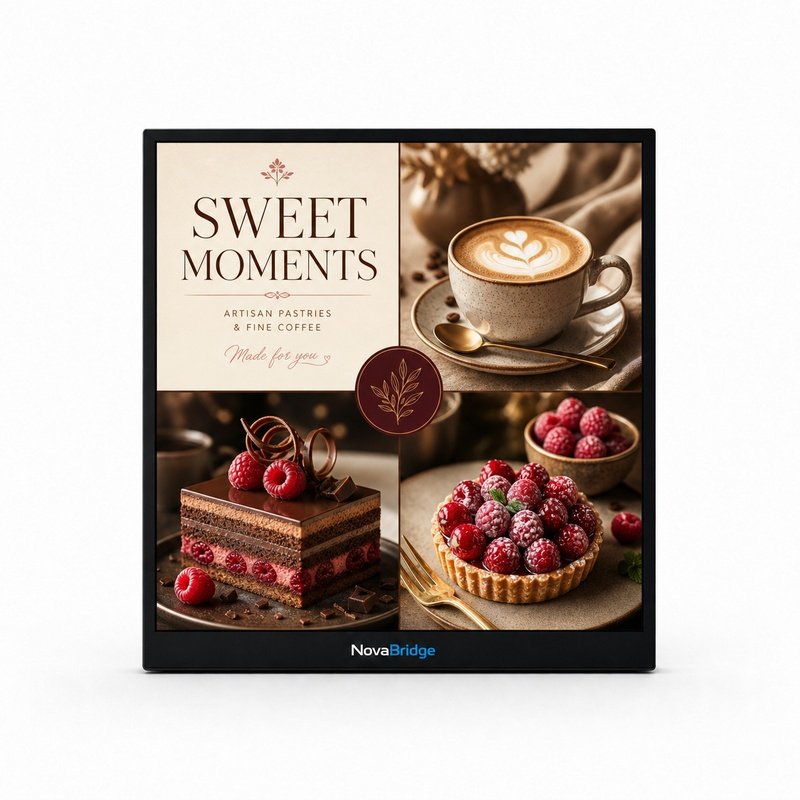

Square LCD Display
A 1:1 digital canvas for distinctive branded environments.
NovaBridge square LCD displays replace the conventional widescreen format with a balanced 1:1 canvas. Multiple sizes, mounting options and system configurations give designers more freedom for product storytelling, exhibits and creative digital installations.
Key advantages
Designed for practical commercial deployment.
01
A Display Beyond the Rectangle
Purpose-built aspect ratios create more distinctive digital canvases for branded interiors, exhibits and experiential retail concepts.
02
Flexible Content Management
Update media by USB or connect the display to a compatible cloud CMS for remote publishing, scheduling and device-level control.
03
Commercial-Grade Operation
Industrial display components, stable thermal design and robust housings support dependable daily operation in demanding public environments.
04
Project-Ready Configuration
Screen size, system, memory, touch technology, housing colour and selected peripherals can be configured around the project brief.
Reference specification
Core configuration
A clear starting point for project discussion. Final values depend on the selected screen size, system and optional functions.
| Screen sizes | 8.9, 19, 22, 25.5, 28.5, 33 and 58.8 inch; custom options |
|---|---|
| Aspect ratio | 1:1 |
| Resolution | FHD, UHD or up to 3840 × 3840 by model |
| Panel | Commercial IPS A+ LCD |
| System | Android, Windows or external-player configuration |
| Connectivity | Wi-Fi, Bluetooth, USB, HDMI and Ethernet options |
| Front | Tempered glass; IP65-class front protection option |
| Operation | Commercial continuous-use design |
| Housing | Metal enclosure, colour customisable |
| Installation | VESA wall mount, flush mount or project bracket |
Product detail framework
Technical details prepared around the confirmed model.
The exact drawing, interface map, installation file and packing information vary by size and configuration. These items are confirmed privately for each project.
INTERFACE LAYOUT
02
Interfaces & connectivity
Power, signal, network and optional peripheral interfaces are matched to the confirmed Android, Windows or OPS configuration.
INSTALLATION GUIDE
03
Installation & mounting
Installation guidance is prepared around the special-shaped displays format, site conditions and the selected mounting accessories.
PACKING & DOCUMENTS
04
Packaging & project files
Accessory lists, protective packing details, manuals and available technical documents are aligned before shipment.
Certification icons
Confirm coverage for the selected model.
CERoHSCBENERGY STAR
Certification coverage varies by product model, market and final configuration. Please confirm the applicable certification set with NovaBridge before ordering.
Discuss this product
Turn the reference platform into your configuration.
Tell us the application, quantity, market and preferred options. Pricing, MOQ, lead time and warranty terms are provided privately after requirements are reviewed.
