MODEL-SPECIFIC DRAWING
01
Dimensions & structure
Overall dimensions, visible area, enclosure profile and installation clearances are confirmed for the selected screen size.
Outdoor Digital Signage

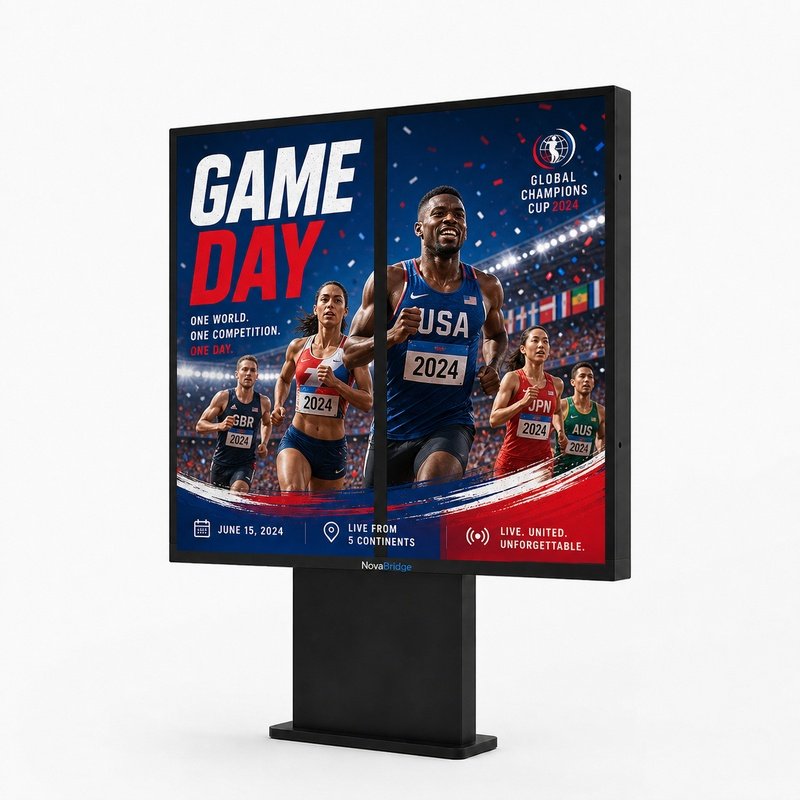

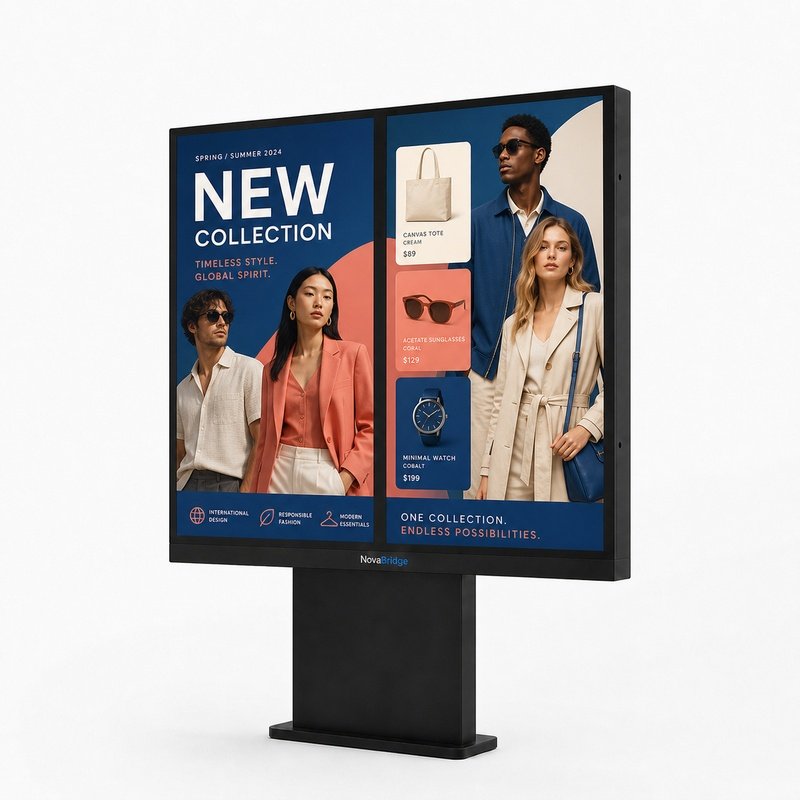

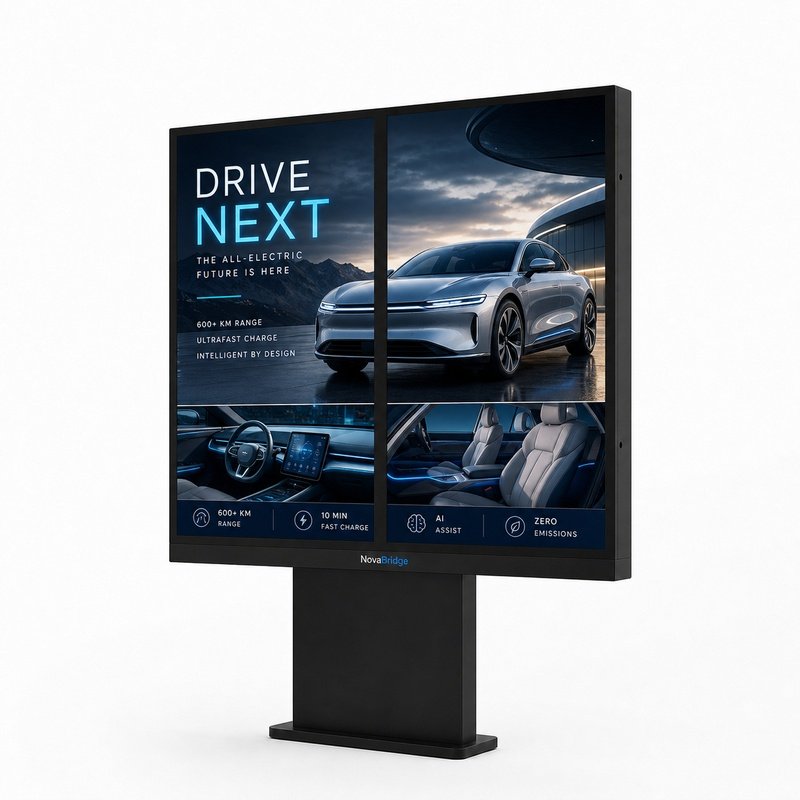

Multi-Screen Outdoor Digital Signage
Single, dual or triple-screen outdoor formats for larger campaigns.
NovaBridge multi-screen outdoor signage can be configured around one, two or three display faces to increase visibility across different approach angles. A slim, robust enclosure and ultra-high-brightness options support outdoor advertising and information projects with complex installation requirements.
Key advantages
Designed for practical commercial deployment.
01
Sunlight-Readable Visuals
High-brightness panel options and automatic brightness control keep important content clear in bright storefront and outdoor conditions.
02
Weather-Resistant Design
Sealed enclosures, protective glass and engineered ventilation help defend the display against rain, dust and temperature changes.
03
Project-Ready Configuration
Screen size, system, memory, touch technology, housing colour and selected peripherals can be configured around the project brief.
04
Flexible Content Management
Update media by USB or connect the display to a compatible cloud CMS for remote publishing, scheduling and device-level control.
Reference specification
Core configuration
A clear starting point for project discussion. Final values depend on the selected screen size, system and optional functions.
| Screen modules | 43 and 55 inch; single, dual or triple-screen configurations |
|---|---|
| Resolution | FHD or 4K options |
| Brightness | 2500–4000 cd/m²; up to 5000 cd/m² by configuration |
| Protection | IP66-class slim outdoor enclosure |
| System | Android or Windows configuration |
| Storage | Configurable internal storage with USB expansion |
| Connectivity | Wi-Fi, Ethernet, USB, HDMI and cellular options |
| Brightness control | Automatic ambient-light adjustment |
| Cooling | Engineered thermal management |
| Installation | Project-specific freestanding structure |
Product detail framework
Technical details prepared around the confirmed model.
The exact drawing, interface map, installation file and packing information vary by size and configuration. These items are confirmed privately for each project.
INTERFACE LAYOUT
02
Interfaces & connectivity
Power, signal, network and optional peripheral interfaces are matched to the confirmed Android, Windows or OPS configuration.
INSTALLATION GUIDE
03
Installation & mounting
Installation guidance is prepared around the outdoor digital signage format, site conditions and the selected mounting accessories.
PACKING & DOCUMENTS
04
Packaging & project files
Accessory lists, protective packing details, manuals and available technical documents are aligned before shipment.
Certification icons
Confirm coverage for the selected model.
CERoHSCBENERGY STAR
Certification coverage varies by product model, market and final configuration. Please confirm the applicable certification set with NovaBridge before ordering.
Discuss this product
Turn the reference platform into your configuration.
Tell us the application, quantity, market and preferred options. Pricing, MOQ, lead time and warranty terms are provided privately after requirements are reviewed.
